DRAINAGE PLOW
BRON 385
61,000 lbs
380 HP
90" DEPTH
BRON 385

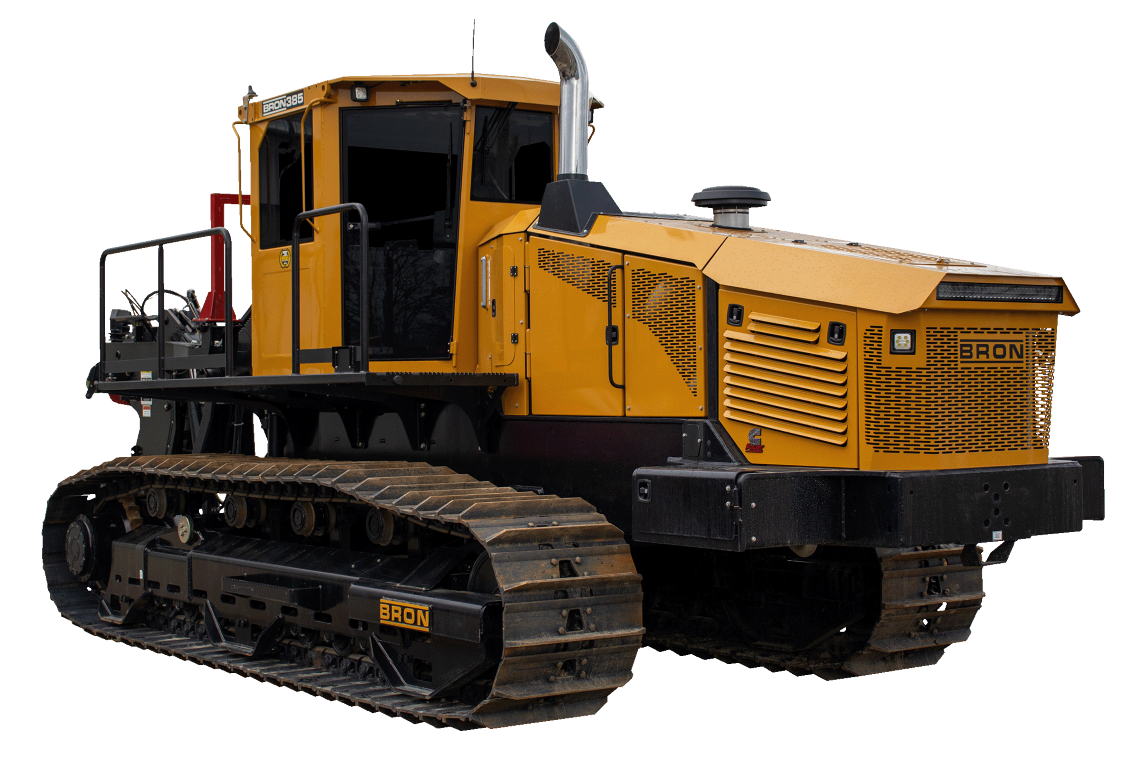

The BRON 385 Drainage Plow combines the features of BRON’s larger drainage plows with the requirement of lighter road weight. Weighing only 61,000 pounds, the 385 Drainage Plow offers you BRON technology and design on a D6 undercarriage, paired up to the proven DL750 Plow for maximum productivity in its weight class.
| Weight - lbs (kg) | 61,000 (27,669) |
| Overall Width (Footprint) - in. (mm) | 122” / 124” / 126” (3,099 / 3,150 / 3,200) |
| Overall Height - in. (mm) | 135” (3,429) |
| Length With Attachment - in. (mm) | 354” / 365” (8,992 / 9,271) |
| Cab | Fully enclosed cab with HVAC (ROPS & FOPS) |
| Steering | Joystick |
| Engine Make & Model | Cummins® L9 |
| Emissions Certified | Tier 4F |
| Net Power - hp (KW) | 365 (272) Peak 380 (279.5) |
| Fuel Tank Capacity - U.S. Gal. (L) | 145 (549) |
| Ground Pressure - psi (kPa) | 5.0 (34.5) |
| Ground Clearance - in. (mm) | 21” (533) |
| Undercarriage | D6 |
| Travel Speed - mph (kph) | 3.4 (5.5) |
| Maximum Cutting Depth - in. (mm) | 90” (2,286) |
| Track Drive | Hydrostatic |
| Shoe Width - in. (mm) | 30” / 32” / 34” (762 / 813 / 864) |
| Rollers | 8 |
| Hydraulic Tank Capacity - U.S. Gal. (L) | 50 (189) |
