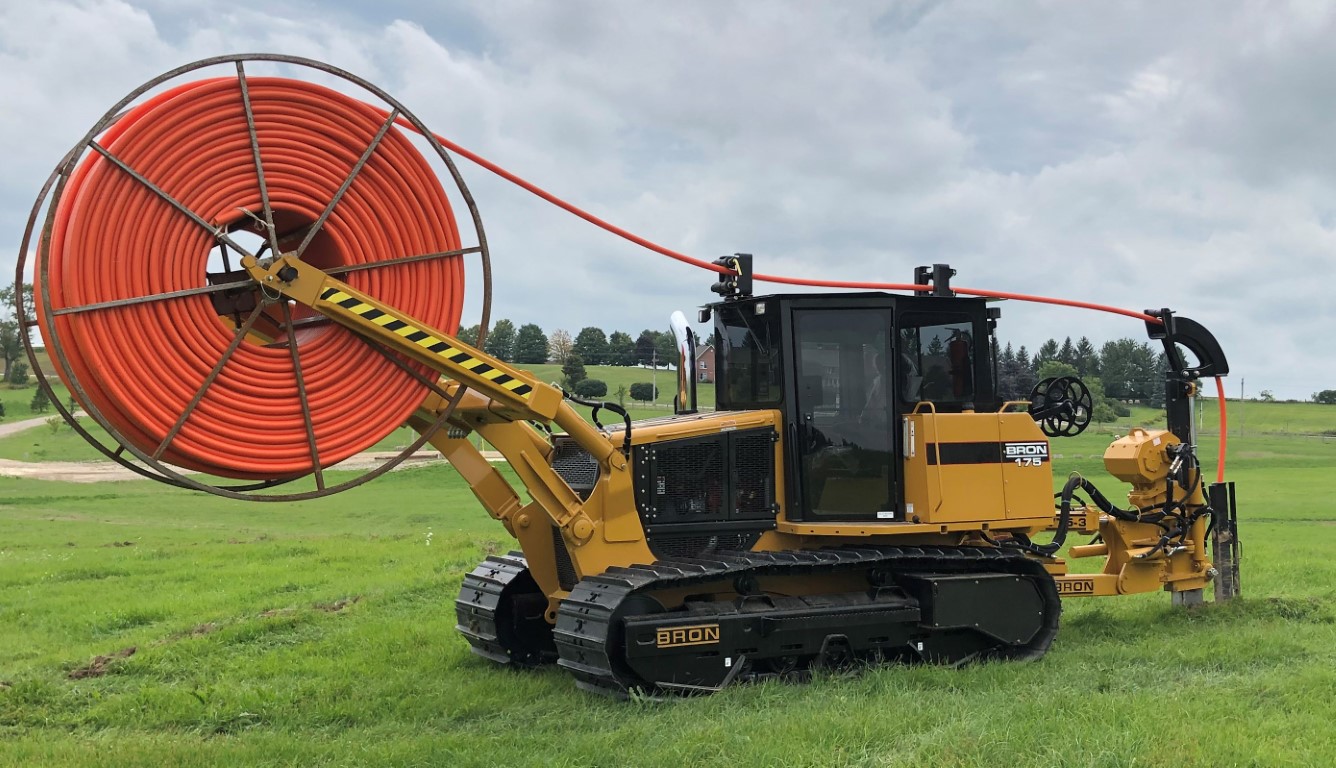

BRON 175HD UTILITY PLOW
The BRON 175HD is a compact Utility Tractor used for gas and utility installations. Engineered for power and performance, the BRON 175HD is designed to allow contractors to work on any terrain, maneuver in tight areas, and perform actively in all soil conditions. The BRON 175HD comes with variable vibration for optimal performance in tough ground conditions along with an 8,000 lb. capacity reel carrier.
| Operating Weight - lbs (kg) | 42,000 (19,051) |
| Overall Width (Footprint) - in. (mm) | 102” (2,591) |
| Overall Height - in. (mm) | 109” (2,769) |
| Length With Attachment - in. (mm) | 366” (9,296) |
| Operator Station | ROPS Enclosure (Optional Canopy) |
| Steering | Joystick |
| Engine Make & Model | Cummins® B6.7 |
| Emissions Certified | Stage V |
| Net Power - hp (KW) | 225 (165) |
| Fuel Tank Capacity - U.S. Gal. (L) | 69 (261) |
| Ground Pressure - psi (kPa) | 6.5 (44.8) |
| Ground Clearance - in. (mm) | 24” (610) |
| Undercarriage | D4 |
| Travel Speed - mph (kph) | 3.4 (5.5) |
| Compatible Plow Styles | V175HD |
| Maximum Cutting Depth - in. (mm) | 54” (1372) |
| Track Drive | Hydrostatic 2-Speed Automatic (Variable Speed) |
| Shoe Width - in. (mm) | 26”/30” (660/762) |
| Rollers Per Side | 7 |
| Hydraulic Tank Capacity - U.S. Gal. (L) | 52 (197) |
